Investment Casting Services
Near-net-shape metal castings for intricate housings, impellers, valve bodies and custom OEM components. JINGLE reviews the geometry, alloy and inspection plan before production.
- Complex Geometry & Fine Features
- Thin Walls & Near-Net Shape
- CMM / NDT Inspection
Trusted by Customers Across Industries
Casting support for industrial equipment, fluid control, automation, mobility and custom OEM programs.
Investment Casting Capabilities
A quick view of the information buyers need before sending an investment casting RFQ. Final values are confirmed against alloy, geometry, shell system and inspection requirements.
| Parameter | Capability details |
|---|---|
| Casting Process | Wax pattern / ceramic shell investment casting; configuration confirmed per project |
| Typical Part Size | To be confirmed - reserve pattern, shell and pouring envelope |
| Typical Tolerance | To be confirmed - quote-specific casting tolerance range |
| Surface Finish | To be confirmed - shell, alloy and post-cast finish dependent |
| Materials | Stainless steel, alloy steel, aluminum alloys, nickel and cobalt alloys, copper-based alloys |
| Inspection | Visual, dimensional, CMM, radiographic or other NDT as required |
| Production Volume | Prototype, low-volume and batch production |
| Accepted Drawing Formats | STEP, IGES, Parasolid, SolidWorks, PDF drawing and DXF |
Complex Shape. Controlled Pattern. Repeatable Castings.
01
Pattern review
Check draft, wall transitions, cores and machining stock before tooling release.
Tooling inputs defined
02
Shell control
Manage ceramic shell build, drying and handling around the part geometry.
Shell integrity controlled
03
Near-net output
Reduce excess stock while preserving the features that drive fit and function.
Machining stock reduced
See the Work Behind the Capability

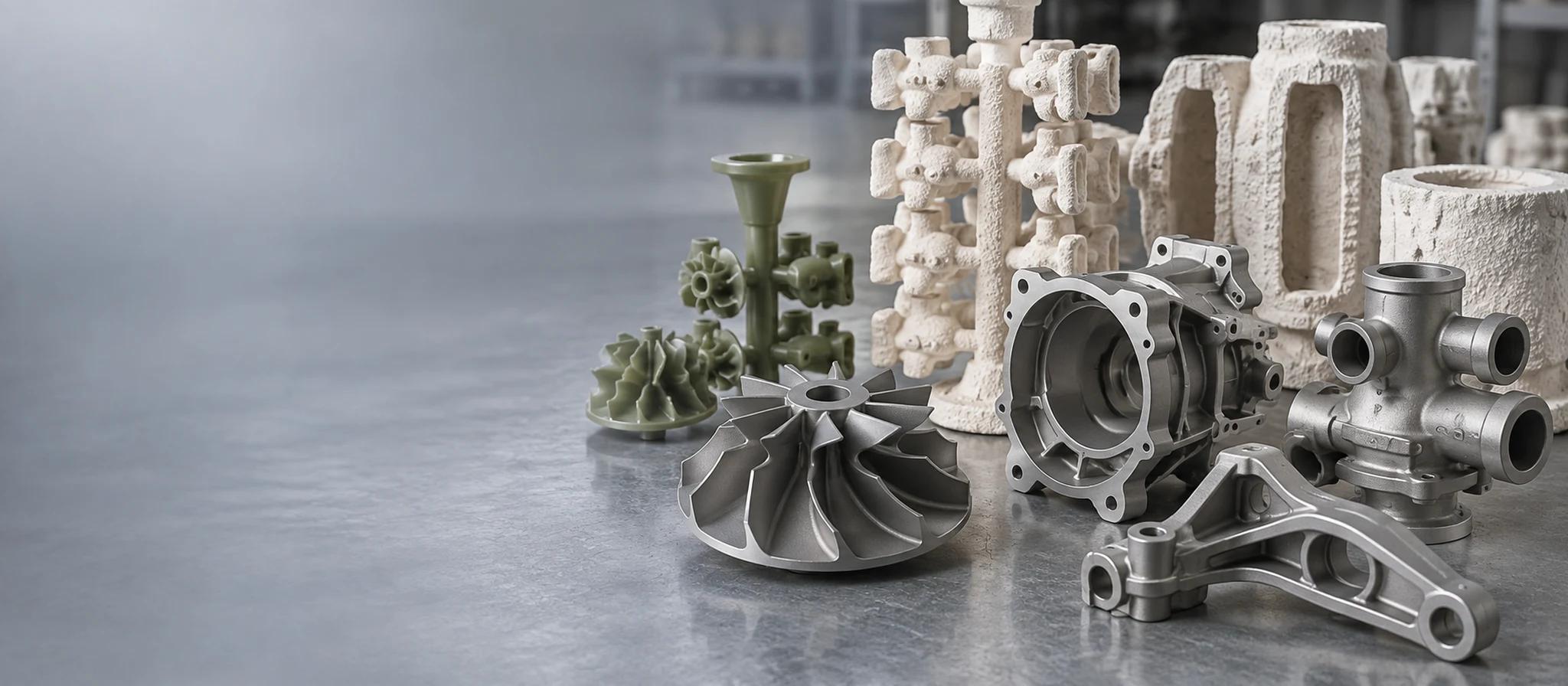

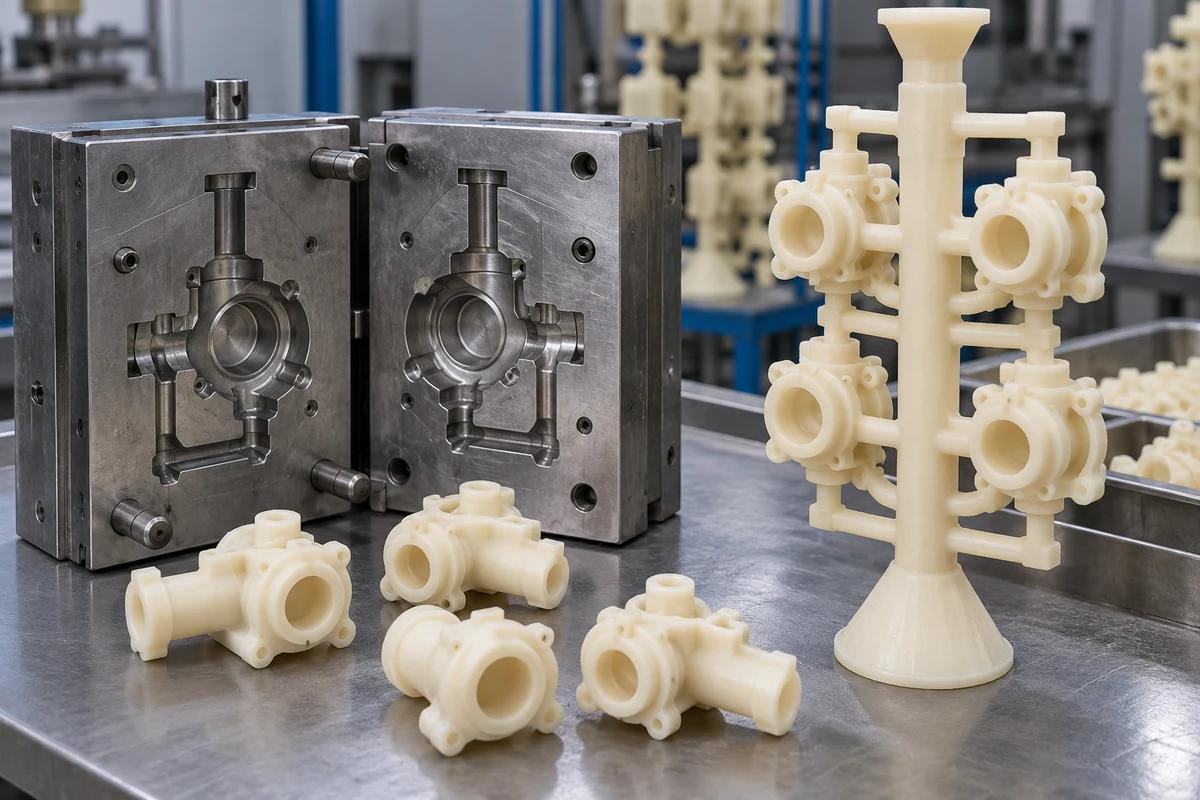

Real investment casting equipment
Wax patterns, pattern assemblies and ceramic shell preparation.
Actual casting in process
Shell handling, pouring and knockout within the casting route.
Real finishing and inspection environment
Cut-off, blast cleaning and dimensional inspection of finished castings.

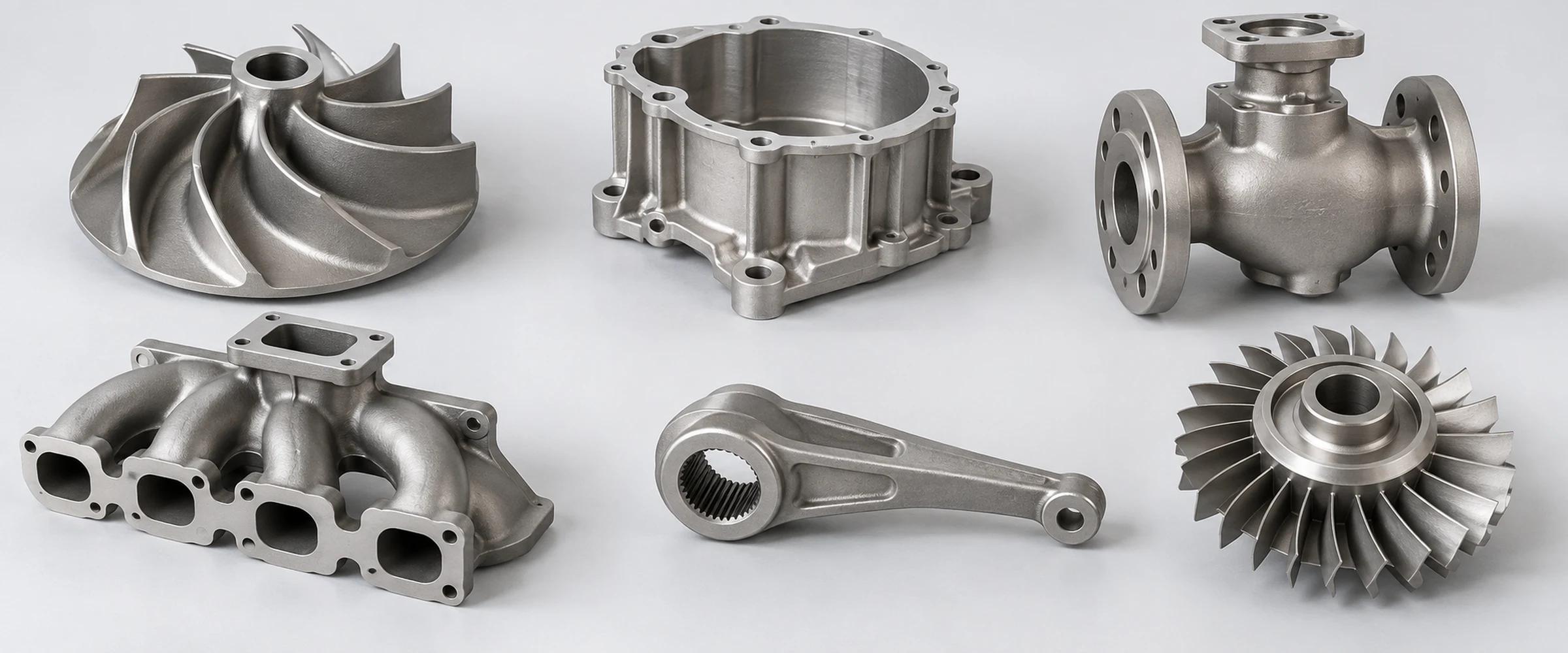

Parts We Commonly Cast
Complex Housings
Integrated walls, bosses and mounting interfaces.
Impellers & Blades
Curved profiles for flow and rotating equipment.
Valve Components
Bodies and fittings with defined sealing interfaces.
Aerospace-Style Brackets
Lightweight mounting geometry reviewed for the application.
Intricate Manifolds
Complex flow paths with planned core and machining access.
Custom OEM Castings
Project-specific geometry developed from your model and drawing.
Materials We Cast
Stainless Steel
corrosion-resistant housings
Alloy Steel
high-strength interfaces
Aluminum Alloys
lightweight structures
Nickel & Cobalt Alloys
high-temperature components
Copper-Based Alloys
fluid and electrical fittings
Quality Evidence at Every Handoff
- 01
Incoming Alloy & Certificate Review
Review the specified alloy grade and required material certificates before production.
- 02
Pattern, Shell & Process Checks
Check pattern condition, shell preparation and process checkpoints against the approved route.
- 03
Dimensional / NDT Inspection
Verify specified dimensions and agree CMM or NDT scope before production.
- 04
Final Inspection
Confirm casting condition, finished features and required records before release.
Documents available
- CMM Report
- FAI
- Material Certificate
- Heat Treatment Certificate
- CoC
- PPAP Upon Request
Prototype to Production
01
Prototype Castings
Validate geometry, alloy and machining allowance before committing to a repeat route.
02
Low-Volume Production
Build launch quantities with documented pattern and inspection checkpoints.
03
Batch Production
Repeat the approved shell, pour and finishing process with controlled release.
Engineering Support You Can Use
01
Casting DFM Review Before Tooling
Review alloy, wall transitions and machining stock before the pattern and tooling plan is released.
02
Complex Geometry & Core Strategy
Coordinate fine features, internal geometry and core access around the finished part requirements.
03
Flexible Prototype & Batch Production
Plan validation castings, launch quantities and repeat batches around agreed process checkpoints.
04
Controlled Casting and Inspection Process
Align shell, pouring and finishing controls with the agreed dimensional and NDT inspection scope.
05
Material, Heat Treatment & Inspection Documentation
Confirm required material certificates, heat treatment records and inspection reports during RFQ review.
06
Responsive RFQ Support
Clarify geometry, alloy, quantity and inspection inputs before confirming the quotation route.
Investment Casting FAQ
What geometries are best suited to investment casting?
Investment casting suits intricate housings, impellers, valve components and parts with fine features or complex contours. Send the 3D model and drawing so wall transitions, cores and machining allowances can be reviewed.
What alloys can you cast?
Candidate materials include stainless steel, alloy steel, aluminum, nickel and cobalt alloys, and copper-based alloys. The exact grade and inspection requirements are confirmed during project review.
Can you support prototypes and low-volume orders?
Prototype, low-volume and batch routes can be reviewed against the part geometry and tooling requirements. Share the alloy, quantity and inspection scope to confirm a suitable production plan.
How much machining stock should be included?
Machining allowance depends on the alloy, geometry, casting variation and critical finished features. Send the as-cast and finished requirements so stock and datums can be agreed before tooling release.
Can you provide CMM and NDT reports?
CMM and NDT reporting can be included when specified and agreed in the inspection plan. Provide the drawing, acceptance criteria and required documentation with your RFQ.
How quickly can you quote an investment casting part?
Quote timing depends on the completeness of the model, drawing, alloy, quantity and inspection requirements. We review these inputs and confirm the quotation schedule rather than promise a fixed turnaround.
Have a Complex Casting to Develop?
Send the model, drawing, alloy and quantity. We will review the casting route, core strategy, machining stock and inspection plan before quoting.
- 3D Model
- Technical Drawing
- Material Grade
- Quantity
- Tolerance
- Surface Finish
- Inspection Requirements
