01
Multi-face access
Reach angled features and deep surfaces without repeated manual re-fixturing.
Improved feature access
Multi-Axis CNC Machining Services
Multi-axis machining for complex parts that need more than one direction of access. JINGLE reviews the geometry, setup strategy and inspection plan before production.
- 4+1, 5-Axis & Turn-Mill Options
- Multi-Face Access
- Datum-Controlled Inspection
Trusted by Customers Across Industries
Multi-axis support for automation, industrial equipment, mobility and custom OEM programs.
Multi-Axis CNC Machining Capabilities
Use this snapshot to decide whether a multi-axis review is the right next step for your part.
| Parameter | Website copy |
|---|---|
| Machining Type | 4+1 positioning, simultaneous 5-axis and turn-mill options confirmed per project |
| Max. Part Size | To be confirmed - reserve equipment envelope |
| Typical Tolerance | To be confirmed - quote-specific tolerance range |
| Surface Finish | To be confirmed - Ra range by material and process |
| Materials | Aluminum, stainless steel, alloy and carbon steel, copper and brass, engineering plastics |
| Inspection | In-process gauging, CMM, first-article and final inspection |
| Production Volume | Prototype, low-volume and batch production |
| Accepted Drawing Formats | STEP, IGES, Parasolid, SolidWorks, PDF drawing and DXF |
More Directions. Fewer Compromises.
02
Coordinated motion
Match axis strategy to the feature, surface and tool access required.
Motion matched to geometry
03
Setup reduction
Protect relationships between critical datums and shorten the handoff to inspection.
Critical relationships protected

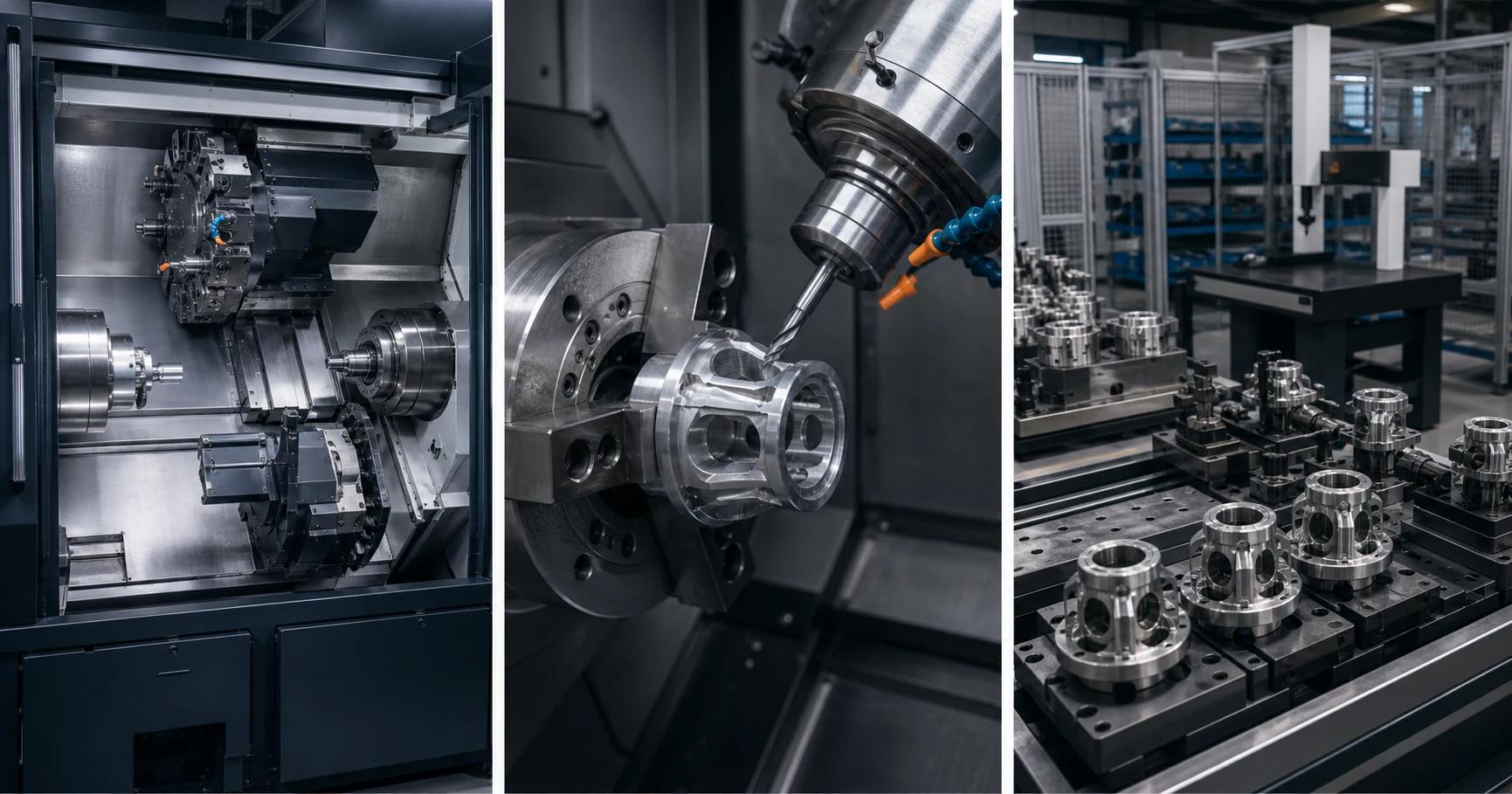

See the Work Behind the Capability
Multi-axis equipment
Rotary table, live tooling and multi-axis working envelope.

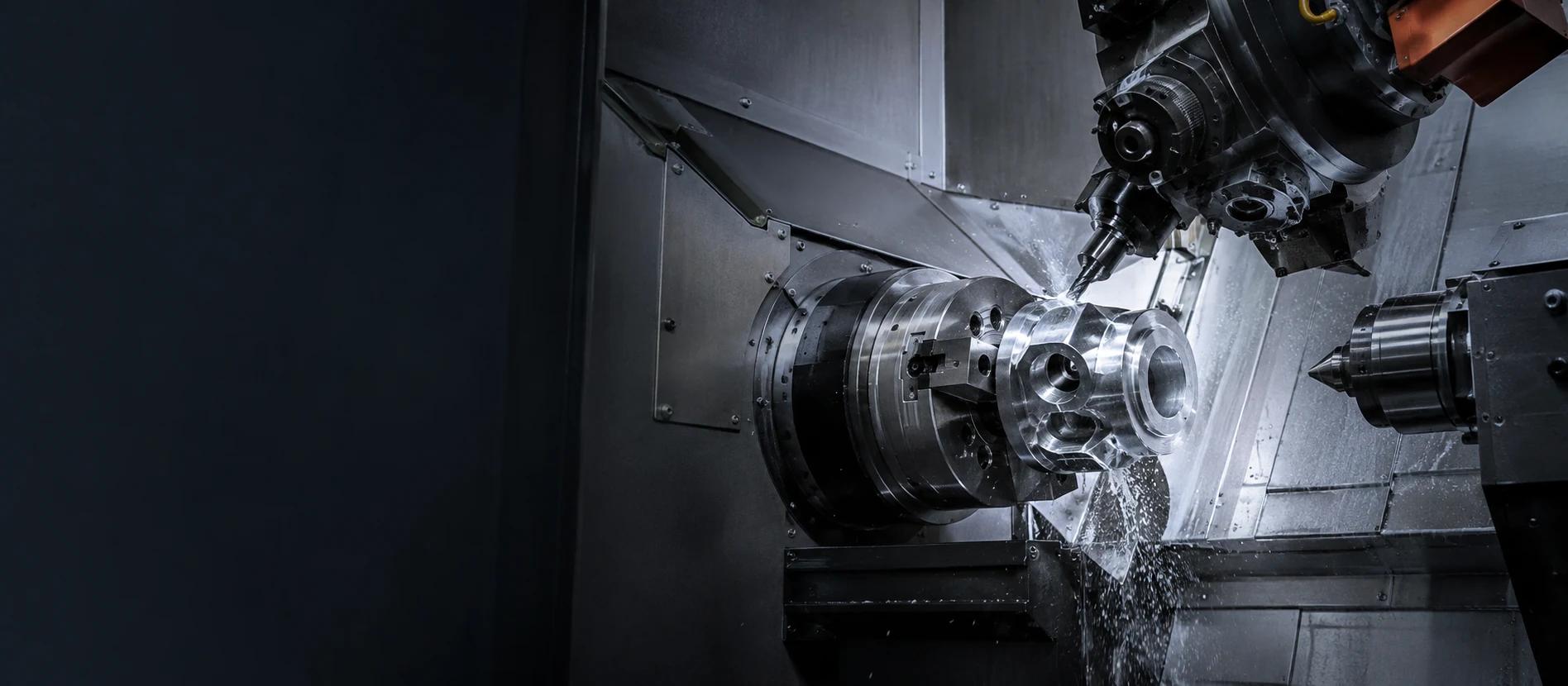

Actual complex machining
Angled, deep and compound features being cut in a controlled setup.
Real production environment
Machine rows, workholding and an organized inspection handoff.

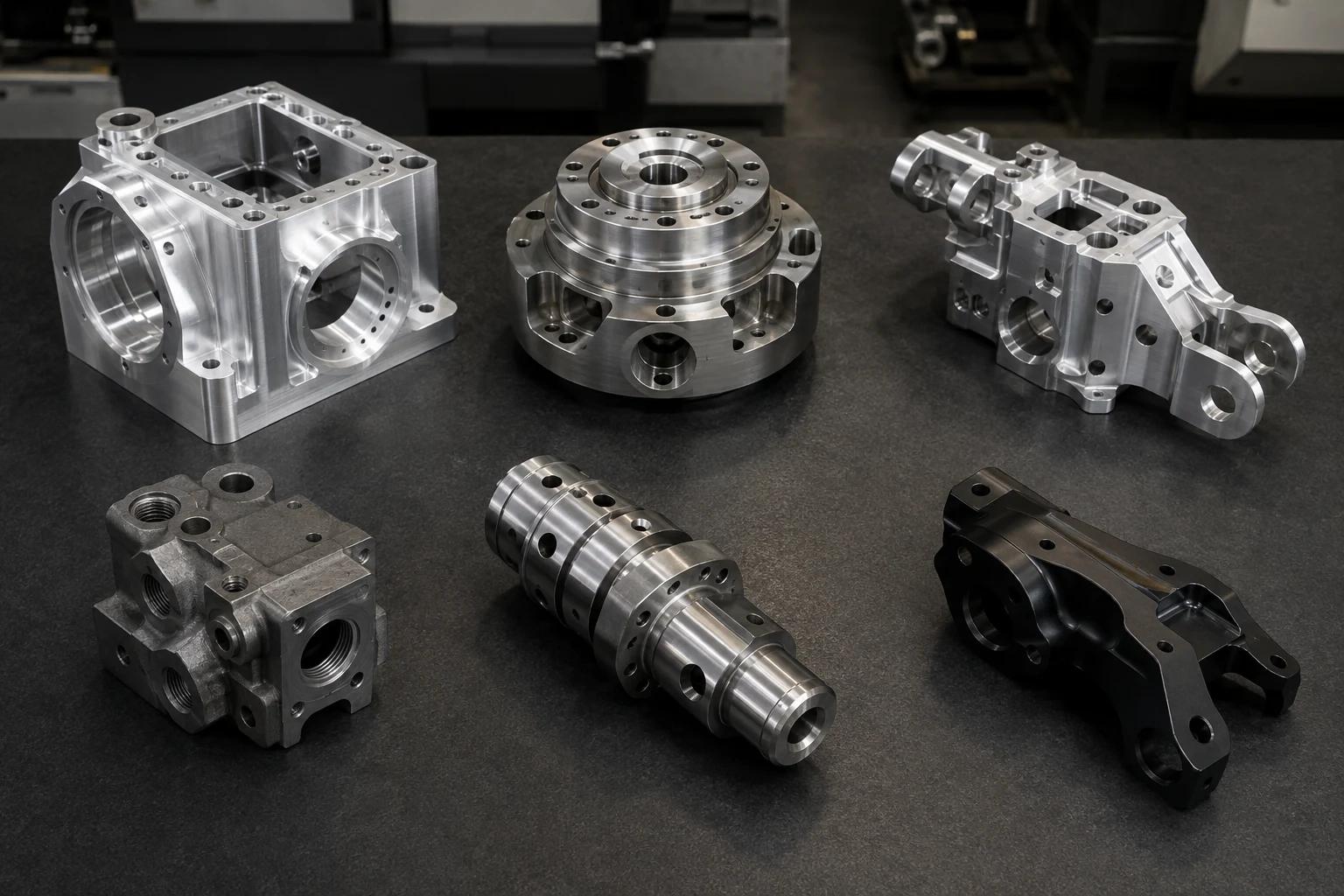

Parts We Commonly Machine
Complex Housings
Multi-face housings with interacting bores, surfaces and datums.
Multi-Face Fixtures
Production and inspection fixtures with features in multiple directions.
Robotic Links & End Effectors
Motion components with controlled mounting and working interfaces.
Valve & Hydraulic Bodies
Fluid-control parts with angled passages and sealing features.
Turn-Mill Components
Rotational parts with integrated milled features and related datums.
Freeform OEM Profiles
Application-specific compound geometry produced from detailed models.
Materials We Machine
Aluminum
Lightweight structures
Stainless Steel
Corrosion-resistant interfaces
Alloy & Carbon Steel
High-strength parts
Copper & Brass
Fluid and electrical fittings
Engineering Plastics
Low-friction components
Quality Evidence at Every Handoff
- 01
Incoming Material Inspection
Verify material grade, condition and certification before machining.
- 02
In-Process Feature Checks
Check critical datums and features before the next operation or orientation.
- 03
CMM Inspection
Measure multi-face feature relationships and provide traceable data when requested.
- 04
Final Inspection
Confirm dimensional, visual and documentation requirements before release.
Documents available
- CMM Report
- FAI
- Material Certificate
- CoC
- PPAP Upon Request
Prototype to Production
01
Prototype
Test setup strategy and feature access early.
02
Low-Volume Production
Release launch quantities with the inspection plan attached.
03
Batch Production
Repeat the approved process with stable handoffs.
Engineering Support You Can Use
01
Engineering Review Before Production
Confirm feature access, datum strategy and inspection requirements before release.
02
Multi-Face Geometry Manufacturing
Coordinate machining directions for deep, angled and compound features.
03
Flexible Prototype & Batch Production
Maintain key process controls as quantity scales from prototypes to repeat batches.
04
Controlled Inspection Process
Plan inspection checkpoints around critical datums and feature relationships.
05
Material & Inspection Documentation
Receive the certificates and reports specified in the RFQ.
06
Responsive RFQ Support
Get a clear response path for geometry, axis strategy, quantity and tolerance questions.
Multi-Axis CNC Machining FAQ
When should I consider multi-axis CNC machining?
Consider it when a part has multi-face, angled, deep-access or combined turning and milling requirements. Send the model and drawing so we can review the practical axis strategy.
What is the difference between 3+2 and simultaneous 5-axis?
3+2 positions the part before stable indexed cutting, while simultaneous 5-axis coordinates rotary and linear motion during cutting.
Can you combine turning and milling in one process?
Yes, when turn-mill equipment improves feature alignment or reduces handling. The best route is confirmed during RFQ review.
What materials can you machine?
We machine aluminum, stainless steel, alloy and carbon steel, copper and brass, and engineering plastics.
Can you provide CMM inspection reports?
Yes. CMM reports and other agreed quality documents are available when requested in the RFQ.
What files are needed for a multi-axis quote?
Send the current 3D model and technical drawing with material, quantity and critical inspection requirements.
Have a Multi-Axis Part to Machine?
Send the model and drawing. We will review feature access, setup strategy, quantity and inspection requirements before quoting.
- 3D Model
- Technical Drawing
- Material
- Quantity
- Tolerance
- Surface Finish
- Inspection Requirements
