Sheet Metal Fabrication Services
Cut, form and finish sheet metal parts for enclosures, brackets, panels and custom OEM assemblies. JINGLE coordinates material selection, fabrication, finishing and inspection from prototype through production.
- Cutting, Forming & Finishing
- Prototype to Batch Production
- Dimensional & Final Inspection
Trusted by Customers Across Industries
Sheet metal support for industrial equipment, automation, electronics, mobility and custom OEM programs.
Sheet Metal Fabrication Capabilities
A quick view of the information buyers need before sending a sheet metal RFQ. Final values are confirmed against material, thickness, geometry, finishing and assembly requirements.
| Parameter | Capability details |
|---|---|
| Fabrication Type | Laser cutting, punching, bending, welding, tapping, deburring and assembly |
| Max. Part Size | To be confirmed - reserve cutting, forming and assembly envelope |
| Typical Tolerance | To be confirmed - quote-specific tolerance range |
| Material Thickness | To be confirmed - thickness range by material and process |
| Materials | Mild steel, stainless steel, aluminum, galvanized steel, copper and brass |
| Finishing | Deburring, brushing, powder coating, plating and project-specific finish |
| Production Volume | Prototype, low-volume and batch production |
| Accepted Drawing Formats | STEP, IGES, Parasolid, SolidWorks, PDF drawing and DXF |
One Fabrication Route. Fewer Handoffs. Better Fit.
01
Flat-pattern review
Check bend reliefs, hole locations, grain direction and assembly access before release.
Flat patterns reviewed
02
Process coordination
Align cutting, forming, welding and finishing around the final part function.
Operations coordinated
03
Fit control
Inspect critical interfaces so fabricated parts assemble as intended.
Assembly interfaces verified
See the Work Behind the Capability
Real sheet metal equipment

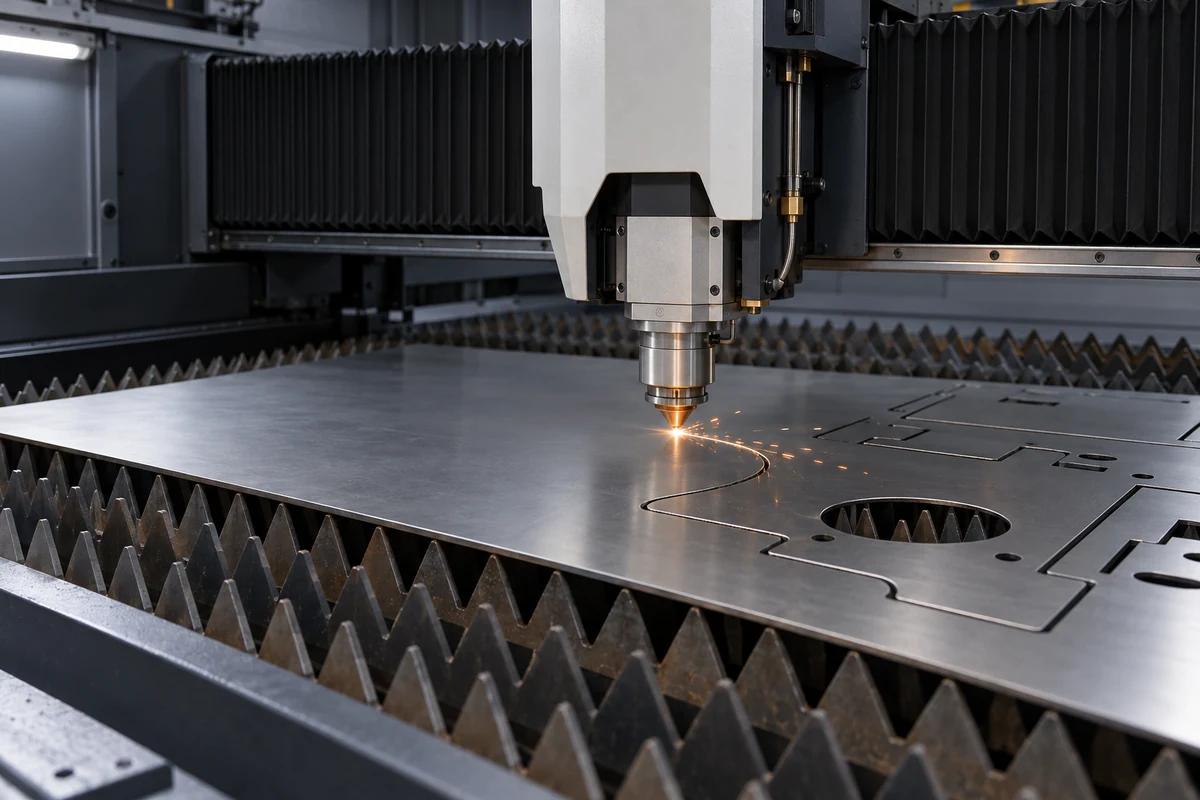

Laser cutting, press brake and punching equipment for sheet metal components.
Actual fabrication in process
Cutting, bending and joining with process-specific fixtures and material handling.
Real finishing and assembly environment

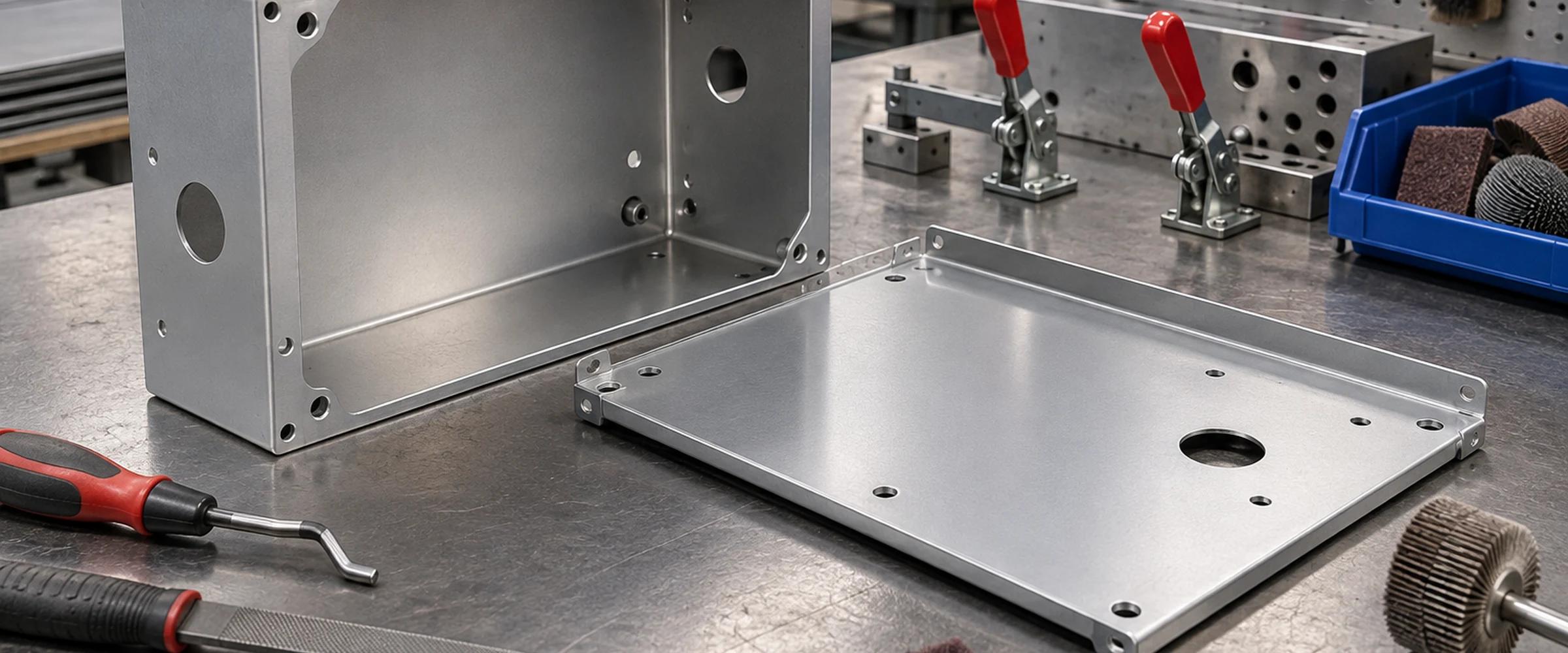

Deburred, finished and assembled parts prepared for dimensional inspection.

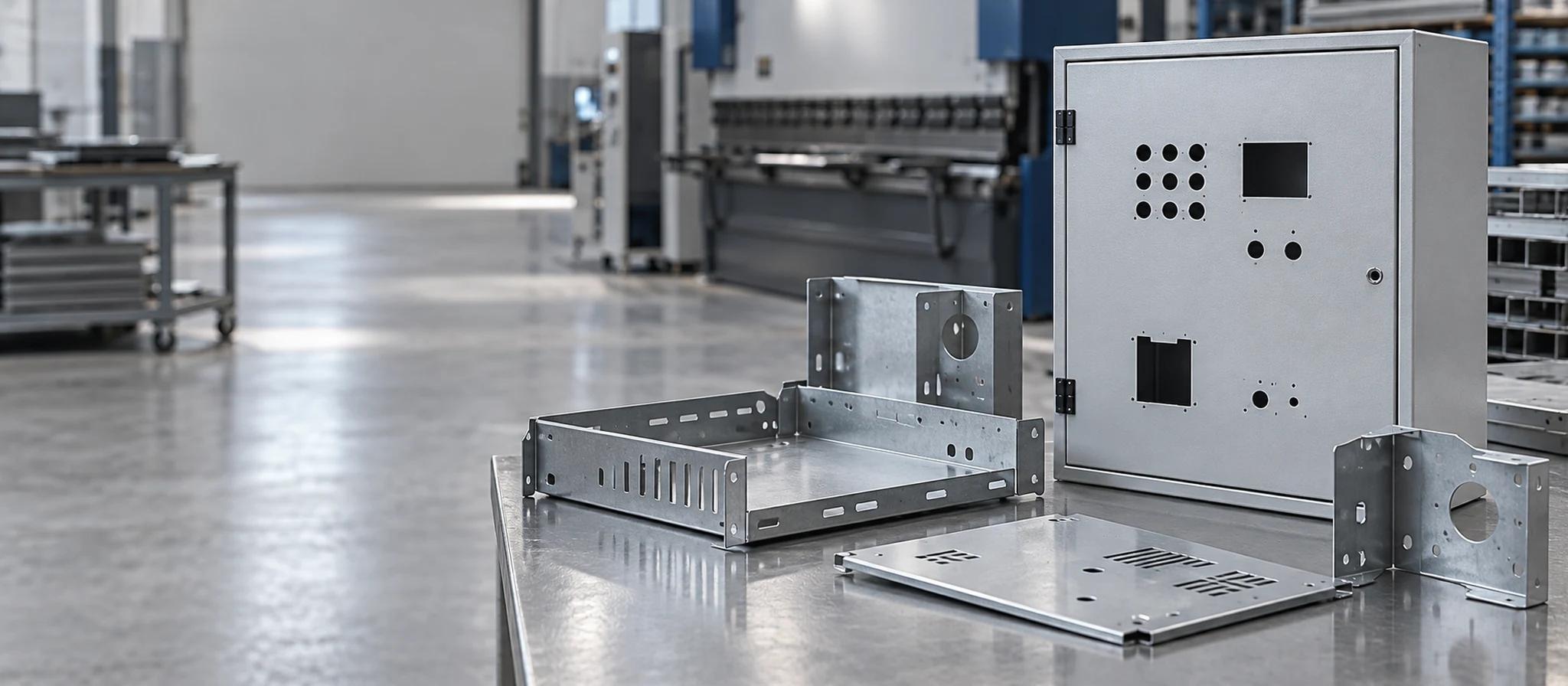

Parts We Commonly Fabricate
Electrical Enclosures
Formed housings with planned mounting and hardware access.
Machine Guards & Panels
Protective panels and guards with controlled fit.
Mounting Brackets
Cut and formed supports with defined mounting interfaces.
Chassis & Frames
Structural subassemblies with coordinated joining and finishing.
Control Cabinets
Panels, doors and frames reviewed as one enclosure system.
Custom OEM Sheet Metal Parts
Drawing-led components with project-specific fabrication and finishing requirements.
Materials We Fabricate
Mild Steel
rigid structural parts
Stainless Steel
corrosion-resistant panels
Aluminum
lightweight enclosures
Galvanized Steel
protected equipment housings
Copper & Brass
conductive fittings and busbars
Quality Evidence at Every Handoff
- 01
Incoming Material & Thickness Review
Review material grade, thickness and required certificates before fabrication.
- 02
In-Process Cut and Bend Checks
Check cut profiles, hole locations, bend angles and flange dimensions between operations.
- 03
Weld, Finish & Assembly Inspection
Review joints, surface condition and assembly interfaces against the approved drawing.
- 04
Final Dimensional Inspection
Confirm critical dimensions and required release records before shipment.
Documents available
- CMM Report
- FAI
- Material Certificate
- Weld Records
- CoC
- PPAP Upon Request
Prototype to Production
01
Prototype Fabrication
Validate flat pattern, bend sequence, finish and fit on the first article.
02
Low-Volume Production
Support launch quantities with documented setups and inspection checkpoints.
03
Batch Production
Repeat an approved fabrication route with planned finishing and delivery control.
Engineering Support You Can Use
01
DFM Review Before Fabrication
Review flat patterns, bend reliefs and hardware access before production release.
02
Cutting, Bending & Welding Coordination
Coordinate cut, formed and welded features around the final assembly requirements.
03
Flexible Prototype & Batch Production
Plan first articles, launch quantities and repeat batches with documented checkpoints.
04
Controlled Finish and Inspection Process
Align surface finishing and dimensional checks with the agreed acceptance criteria.
05
Material & Quality Documentation
Confirm material certificates and quality records during RFQ review.
06
Responsive RFQ Support
Clarify material, thickness, quantity and finish inputs before confirming the quotation scope.
Sheet Metal Fabrication FAQ
What sheet metal processes can you support?
The fabrication route can include laser cutting, punching, bending, welding, tapping, deburring and assembly. Share the model and finished requirements so the operation sequence can be reviewed.
What materials and thicknesses can you fabricate?
Mild steel, stainless steel, aluminum, galvanized steel, copper and brass can be reviewed. Thickness capability is confirmed against the material, geometry and selected process rather than a single general range.
Can you support prototypes and low-volume orders?
Prototype, low-volume and batch production can be planned around the part and finishing requirements. Send the quantity and intended production schedule to confirm suitable setups and inspection checkpoints.
Can you fabricate from DXF or STEP files?
DXF flat patterns and STEP models can be used for fabrication review. Include a controlled drawing with material, thickness, bends, tolerances and finish requirements.
Can you provide finish and inspection documentation?
Material, finish and inspection documentation can be included when agreed in the project scope. Specify the required certificates, dimensional reports and acceptance criteria with the RFQ.
How quickly can you quote a sheet metal part?
Quotation timing depends on the completeness of the model, flat pattern, material, thickness, quantity and finish requirements. We review the inputs and confirm a quotation schedule rather than promise a fixed turnaround.
Have a Sheet Metal Part to Fabricate?
Send the model or drawing with material, thickness, quantity and finish requirements. We will review the fabrication route and return a practical quote path.
- 3D Model
- Flat Pattern or Drawing
- Material Grade
- Thickness
- Quantity
- Finish
- Inspection Requirements
